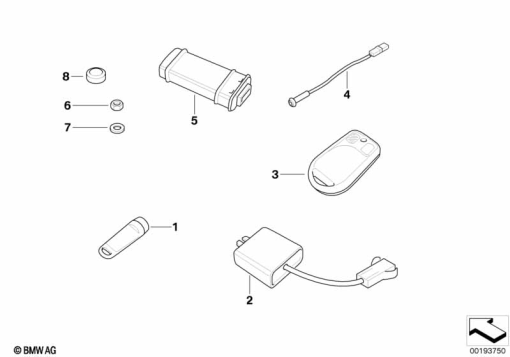

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 75 2 337 406 | CODING PLUG (to 12/02) | - | |
| 2 | 65 75 2 337 405 | MOTION SENSOR (to 12/02) | - | |
| 3 | 65 75 1 696 869 | REMOTE CONTROL - 433MHZ (to 12/02) | - | |
| 5 | 65 75 2 337 408 | RECEIVER, BASIC UNIT, THEFT ALARM - DWA (to 12/02) | - | |
| 6 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 12/02) | - | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (to 12/02) | - | |
| 8 | 65 75 2 337 504 | BATTERY - 3V (to 12/02) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
