R1100GS (259E) | Lighting

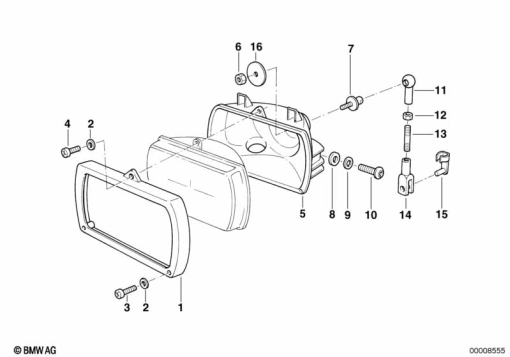

SINGLE COMPONENTS FOR HEADLIGHT
Diagram #63_0399 | 18 parts | 1 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 2 313 317 | FRAME | 1 | |
| 2 | 07 11 9 932 098 | WAVE WASHER - B5 | 1 | |
| 3 | 63 12 2 313 510 | FILLISTER HEAD SCREW | 1 | |
| 3 | 63 12 2 351 531 | COUNTERSUNK SCREW - M5X30 | 1 | |
| 4 | 63 12 2 313 509 | FILLISTER HEAD SCREW - M5X12 | 1 | |
| 4 | 63 12 2 313 509 | FILLISTER HEAD SCREW - M5X12 | 1 | |
| 5 | 63 12 2 313 316 | HEADLAMP HOUSING | 1 | |
| 6 | 07 11 9 905 710 | HEX NUT - M5 | 1 | |
| 7 | 63 12 2 306 491 | BALL PIN | 1 | |
| 8 | 63 12 1 358 129 | RUBBER WASHER | 1 | |
| 9 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 10 | 36 31 7 709 543 | OVAL HEAD SCREW - M8X25-10.9 ZNS3 | 1 | |
| 11 | 63 12 2 306 490 | BALL JOINT | 1 | |
| 12 | 07 11 9 921 040 | HEX NUT - M5 | 1 | |
| 13 | 63 12 2 306 465 | ADJUSTING SCREW | 1 | |
| 14 | 63 12 2 306 464 | FORKHEAD | 1 | |
| 15 | 63 12 2 306 463 | 63 12 2 306 463 | 1 | |
| 16 | 51 11 8 108 144 | WASHER | 1 |
