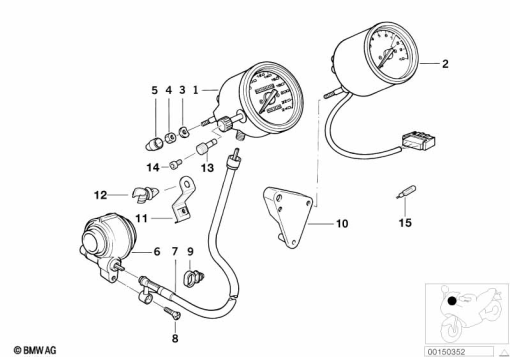

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 12 2 306 505 | SPEEDOMETER - MP/H-KM/H | - | |
| 2 | 62 13 2 306 618 | REVOLUTION COUNTER | - | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | - | |
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 3 | - | ||
| 4 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 5 | 46 62 1 453 668 | PROTECTIVE CAP FOR B+ - M6 | - | |
| 6 | 62 12 2 306 287 | SPEEDOMETER DRIVE - I=3,0 | - | |
| 7 | 62 12 2 306 296 | SPEEDO CABLE - L=1040MM | - | |
| 8 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | - | |
| 9 | 62 12 2 306 249 | HOLDER | - | |
| 10 | 62 21 2 306 440 | HOLDER | - | |
| 15 | 62 14 2 306 127 | BULB - 12V 1,7W | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
