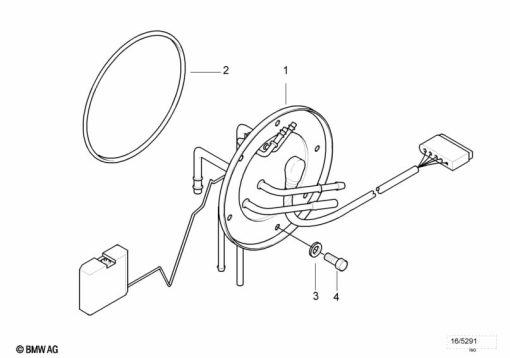

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 14 1 341 922 | PETROL GAUGE | - | |
| 2 | 16 14 1 341 008 | O-RING | - | |
| 3 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 4 | 07 11 9 919 905 | FILLISTER HEAD WITH WASHER - M5X12 (to 10/95) | - | |
07 11 9 906 520 | HEX NUT - M5-10-ZNNIV SI (10/95 to 09/97)Alternative for position 4 | - | ||
07 12 9 902 975 | HEX NUT - AM5-8-ZNS3 (from 09/97)Alternative for position 4 | - |
