R1100GS (259E) | Fuel Supply

FUEL SUPPLY/QUICK COUPLING

Diagram #16_0482 | 7 parts

100%

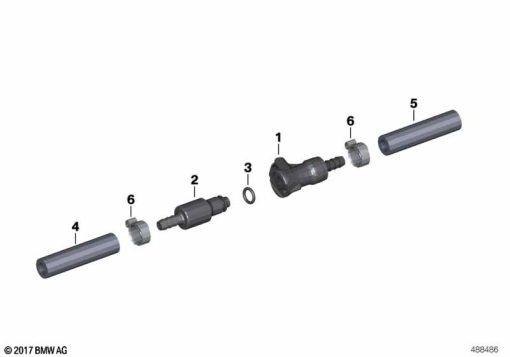

R1100GS (259E) FUEL SUPPLY/QUICK COUPLING exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
1
13 31 7 659 120
CONNECTING SLEEVE-
4
16 12 1 176 918
HOSE CLAMP - 13,1-15,3-
-
13 53 7 700 800
QUICK-RELEASE COUPLING - 180°-
4
16 12 1 176 918
HOSE CLAMP - 13,1-15,3-
-
16 12 1 176 918
HOSE CLAMP - 13,1-15,3-
-
13 53 7 700 797
O-RING-
6
16 12 1 176 918
HOSE CLAMP - 13,1-15,3-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
