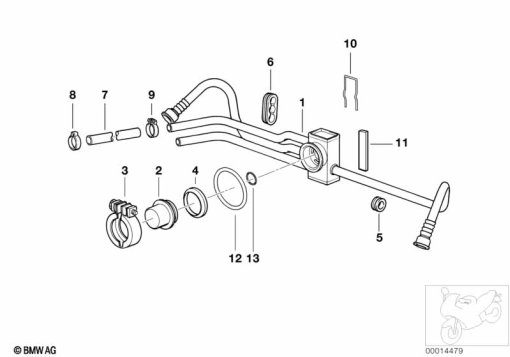

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 7 664 855 | FUEL DISTRIBUTOR | - | |
| 2 | 13 53 1 465 106 | PRESSURE REGULATOR | - | |
| - | 13 53 1 465 193 | O-RING - 5X1,5 | - | |
| 5 | 13 53 1 341 283 | GROMMET | - | |
| 6 | 13 53 1 341 284 | GROMMET, RIGHT | - | |
| 7 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | - | |
| 8 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 9 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | - | |
| 10 | 13 53 1 341 694 | CLAMPING SPRING | - | |
| 11 | 62 21 1 459 439 | SEALING STRIP - 60X15X4 | - | |
| 12 | 13 53 1 341 066 | O-RING - 5X1,5 | - | |
13 53 1 465 193 | O-RING - 5X1,5Alternative for position 12 | - | ||
| 13 | 13 53 1 341 067 | O-RING - 20X2,5 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
