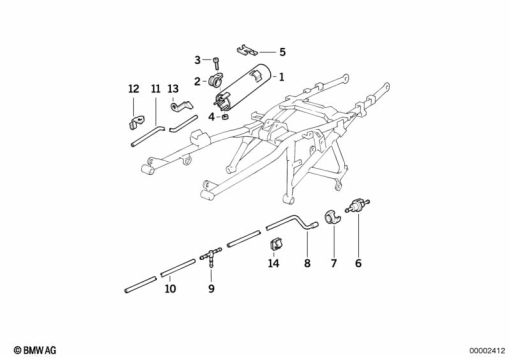

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 1 342 265 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 16 13 1 341 559 | PIPE CLAMP | - | |
| 3 | 07 11 9 919 801 | FILLISTER-HEAD SCREW - M6X16 | - | |
07 11 9 919 801 | FILLISTER-HEAD SCREW - M6X16Alternative for position 3 | - | ||
| 4 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 5 | 16 13 1 341 404 | HOLDER | - | |
16 13 1 341 682 | HOLDER FOR ACTIVATED CHARCOAL FILTERAlternative for position 5 | - | ||
| 6 | 13 90 1 341 605 | FUEL TANK BREATHER VALVE | - | |
| 7 | 13 90 1 717 292 | BRACKET VENTILATION VALVE | - | |
| 8 | 11 73 1 341 477 | HOSE | - | |
| 9 | 11 73 1 261 489 | T-CONNECTOR | - | |
| 10 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | - | |
| 11 | 16 11 1 342 049 | HOSE RUNNING METER - Ø 8X4,5 (meter) | - | |
16 11 1 342 050 | BULK MATERIAL, FUEL HOSE - Ø 8X4,5 (meter)Alternative for position 11 | - | ||
16 13 1 341 666 | HOSE LINEAlternative for position 11 | - | ||
| 12 | 11 73 1 341 510 | BRACKET LEFT | - | |
| 13 | 11 73 1 341 509 | BRACKET RIGHT | - | |
| 14 | 12 42 1 284 411 | CABLE HOLDER | - |
