R1100GS (259E) | Frame, Fairing, Cases

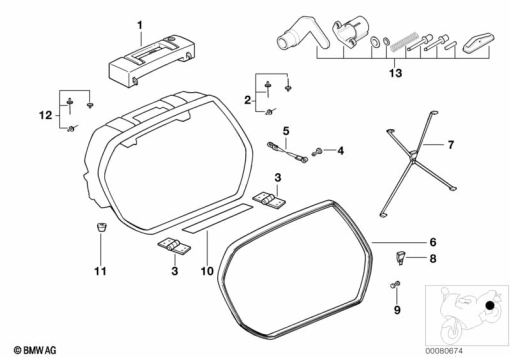

SYSTEM CASE/SINGLE COMPONENTS
Diagram #46_0295 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 307 620 | SET: MULTI-PURPOSE BOX | 1 | |
| 2 | 46 54 2 316 700 | SET: SET OF HINGE RIVETS | 1 | |
| 3 | 46 54 2 316 073 | HINGE | 1 | |
| 4 | 51 16 1 828 956 | 0.01 | 1 | |
| 5 | 46 54 2 316 580 | HOLDING STRAP | 1 | |
| 6 | 46 54 2 316 077 | GASKET | 1 | |
| 7 | 46 54 2 316 074 | RUBBER BAND | 1 | |
| 8 | 46 54 2 316 078 | HOOK | 1 | |
| 9 | 46 54 2 316 076 | AXLE | 1 | |
| 10 | 46 54 2 316 611 | HEAT INSULATION | 1 | |
| 11 | 46 54 2 300 017 | 0.01 | 1 | |
| 12 | 71 60 2 319 470 | SET: SET OF RIVETS F MULTIFUNCTIONAL BOX | 1 | |
| 13 | 71 60 7 654 337 | SET: LOCKING MECHANISM F MULTIFUNCTION BOX | 1 |
