R1100GS (259E) | Frame, Fairing, Cases
RETROFIT KIT, PLASTIC SAFETY BAR

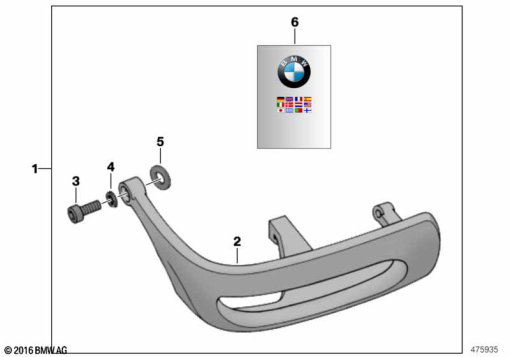

Diagram #46_0316 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 316 487 | SET: SET CYL. PROTECTION BRACKETS, PLASTIC | 1 | |
| 2 | 46 71 2 316 485 | SAFETY BAR, LEFT | 1 | |
| 2 | 46 71 2 316 486 | SAFETY BAR, RIGHT | 1 | |
| 3 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 3 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 6 | 01 29 9 797 366 | INSTALLATION INSTRUCTIONS, SAFETY BAR | 1 |
