R1100GS (259E) | Frame, Fairing, Cases

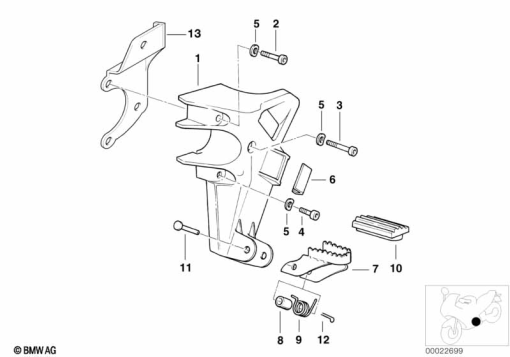

FOOTPEG PLATE/FRONT FOOTPEG
Diagram #46_0291 | 15 parts | 6 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 314 246 | FOOTPEG PLATE RIGHT | 1 | |
| 1 | 46 71 2 314 245 | FOOTREST PLATE, LEFT | 1 | |
| 2 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | 1 | |
| 3 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | 1 | |
| 4 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | 1 | |
| 5 | 07 11 9 904 826 | Washer | 1 | |
| 5 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 6 | 46 71 2 314 721 | STOP BUFFER | 1 | |
| 7 | 46 71 7 729 281 | FOOTREST, LEFT | 1 | |
| 7 | 46 71 7 729 282 | FOOTREST, RIGHT | 1 | |
| 8 | 46 71 1 242 019 | SPACER TUBE | 1 | |
| 9 | 46 71 1 242 020 | SPRING | 1 | |
| 10 | 46 71 1 242 109 | FOOTREST RUBBER | 1 | |
| 11 | 07 11 9 900 585 | 0.05 | 1 | |
| 12 | 07 11 9 905 230 | SPLIT PIN - 2X16 | 1 |
