R1100GS (259E) | Frame, Fairing, Cases
ENGINE PROTECTION BAR SET F PLASTIC TANK

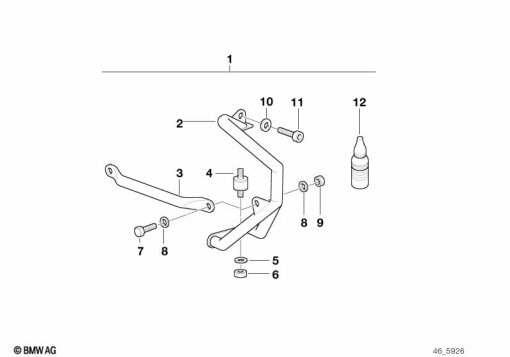

Diagram #46_0327 | 14 parts
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 71 2 319 522 | RIGHT ENGINE PROTECTION BAR | 1 | |
| 1 | 81 22 9 407 420 | KLEBER LOCTITE 638 - 50ML | 1 | |
| 3 | 46 71 2 317 047 | CROSSOVER | 1 | |
| 3 | 46 71 2 319 521 | LEFT ENGINE PROTECTION BAR | 1 | |
| 1 | 81 22 9 407 420 | KLEBER LOCTITE 638 - 50ML | 1 | |
| 4 | 46 71 2 317 048 | RUBBER MOUNTING | 1 | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 6 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 7 | 07 11 9 903 039 | HEX BOLT - M8X20-ZNNIV SI | 1 | |
| 8 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 9 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 10 | 13 51 2 243 795 | WASHER - 18X8,4X3 | 1 | |
| 11 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | 1 | |
| 12 | 81 22 9 407 420 | KLEBER LOCTITE 638 - 50ML | 1 |
