R1100GS (259E) | Frame, Fairing, Cases

COLLAPSIBLE STAND/SIDE STAND

Diagram #46_0371 | 20 parts

100%

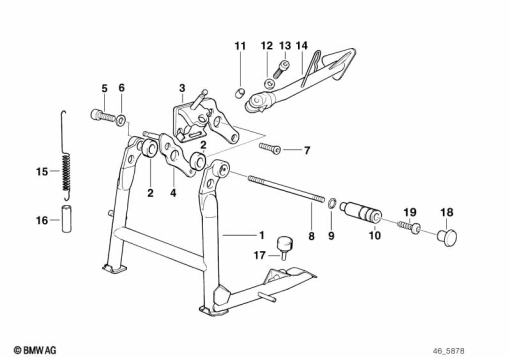

R1100GS (259E) COLLAPSIBLE STAND/SIDE STAND exploded view parts diagram

Parts List (20)

#Part NumberDescriptionQty
1
46 52 2 314 336
CENTER STAND-
2
46 52 2 330 367
SPACER LEFT - 2,5-
46 52 2 330 368
SPACER RIGHT - 4,5Alternative for position 2-
3
46 52 2 325 381
BRACKET LEFT-
4
46 52 2 314 564
BRACKET RIGHT-
5
07 11 9 900 557
FILLISTER-HEAD SCREW - M12X30-
6
07 11 9 906 063
WASHER - 12-200 HV-ZNS3-
7
07 11 9 900 138
COUNTERSUNK HEAD SCREW - M8X25-8.8-
8
07 11 9 910 283
STUD BOLT - M8X105-
9
07 11 9 900 500
O-RING - 17X1,8-
10
46 52 2 314 427
BOLT-
11
46 53 7 663 055
BUSHING-
12
07 11 9 904 168
WASHER - 10-200 HV-ZNNIV-
13
07 11 9 901 049
FILLISTER-HEAD SCREW - M10X30-8.8-ZNS-
11 36 7 545 863
TORX BOLT - M10X1X30Alternative for position 13-
14
46 53 2 335 555
SIDE STAND-
15
46 52 2 314 780
TENSION SPRING-
16
46 52 2 314 177
RUBBER GROMMET-
18
33 12 1 454 019
COVERING CAP (to 01/96)-
19
46 52 2 325 159
FILLISTER HEAD SCREW - M8X16 (from 01/96)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
