Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 11 2 447 552 | SET: BREAKDOWN ASSISTANCE KIT F.TUBELESS TIRE | - | |
| 2 | 12 12 2 306 064 | ADAPTER | - | |
| 3 | 07 11 9 908 041 | DOUBLE OPEN-END WRENCH - 10X13 | - | |
| 4 | 07 11 9 906 030 | INNER HEX SPANNER - BLACK8 | - | |
| 6 | 07 11 9 906 020 | INNER HEX SPANNER - BLACK5 | - | |
| 7 | 07 11 9 906 008 | INNER HEX SPANNER - BLACK3 | - | |
71 11 1 237 852 | INNER HEX SPANNER - BLACK4Alternative for position 7 | - | ||
| 9 | 71 11 2 316 483 | GAUGE - 0,45 - 0,55 MM | - | |
| 10 | 71 11 1 179 629 | SCREWDRIVER | - | |
| 11 | 71 11 2 316 019 | HOOK WRENCH | - | |
| 12 | 71 11 1 240 891 | SOCKET WRENCH - 17 | - | |
| 14 | 71 11 2 316 193 | SPARK PLUG WRENCH - 16 | - |

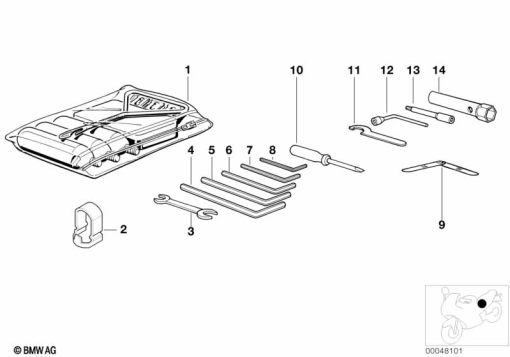

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
