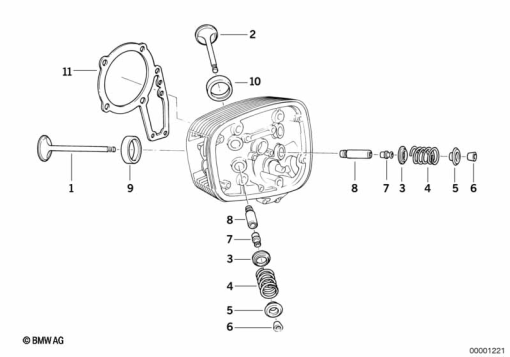

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 1 340 747 | INTAKE VALVE - D=36/6 (to 10/95) | 1 | |
| 1 | 11 34 1 342 016 | INTAKE VALVE - D=34/5 (from 10/95) | 1 | |
| 2 | 11 34 1 340 701 | EXHAUST VALVE - D=31/6 (to 10/95) | 1 | |
| 2 | 11 34 1 342 017 | EXHAUST VALVE - D=29/5 (from 10/95) | 1 | |
| 3 | 11 34 1 340 919 | SPRING POCKET | 1 | |
| 4 | 11 34 1 341 514 | VALVE SPRING | 1 | |
| 5 | 11 34 1 340 918 | UPPER SPRING PLATE - D=6 (to 10/95) | 1 | |
| 5 | 11 34 1 342 971 | UPPER SPRING PLATE - D=5 (from 10/95) | 1 | |
| 6 | 11 34 1 461 405 | VALVE COLLET - D=6 (to 10/95) | 1 | |
| 6 | 11 34 1 340 846 | VALVE COLLET - D=5 (from 10/95) | 1 | |
| 7 | 11 34 1 461 679 | VALVE SEAL RING (to 10/95) | 1 | |
| 7 | 11 34 1 340 849 | VALVE SEAL RING - D=5 (from 10/95) | 1 | |
| 8 | 11 12 1 340 905 | VALVE GUIDE INLET - D=12,55/D=6MM (to 10/95) | 1 | |
| 8 | 11 12 1 340 906 | VALVE GUIDE EXHAUST - D=12,55/D=6MM (to 10/95) | 1 | |
| 8 | 11 12 1 341 600 | VALVE GUIDE INLET - D=12,7/D=6MM (to 10/95) | 1 | |
| 8 | 11 12 1 340 838 | VALVE GUIDE INLET - D=12,7/D=5MM (from 10/95) | 1 | |
| 8 | 11 12 1 340 843 | VALVE GUIDE EXHAUST - D=12,7/D=5MM (from 10/95) | 1 | |
| 9 | 11 12 1 340 574 | VALVE SEAT RING INTAKE (to 10/95) | 1 | |
| 9 | 11 12 1 342 450 | VALVE SEAT RING INTAKE (from 10/95) | 1 | |
| 10 | 11 12 1 340 575 | VALVE SEAT RING EXHAUST (to 10/95) | 1 | |
| 10 | 11 12 1 342 459 | VALVE SEAT RING EXHAUST (from 10/95) | 1 | |
| 11 | 11 12 1 342 869 | CYL. HEAD GASKET, 4 COMPONENTS (to 08/97) | 1 | |
| 11 | 11 12 1 341 194 | CYL. HEAD GASKET, 3 COMPONENTS (from 08/97) | 1 |
