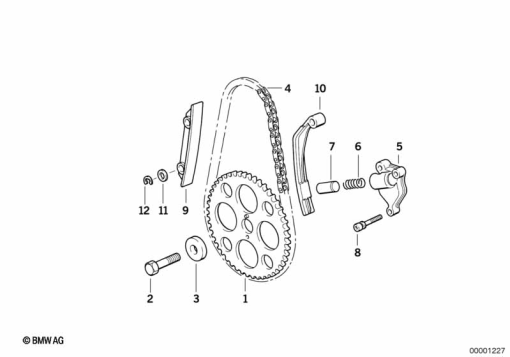

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 1 340 671 | SPROCKET | 1 | |
| 2 | 07 11 9 900 207 | HEX BOLT - M10X40 | 1 | |
| 3 | 11 31 1 341 572 | WASHER | 1 | |
| 4 | 11 31 7 694 426 | TIMING CHAIN | 1 | |
| 5 | 11 31 1 340 726 | HOUSING | 1 | |
| 6 | 11 31 1 335 584 | COIL SPRING | 1 | |
| 7 | 11 31 1 340 592 | PISTON | 1 | |
| 8 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | 1 | |
| 9 | 11 31 1 341 293 | GUIDE RAIL | 1 | |
| 10 | 11 31 7 677 666 | CHAIN TENSIONER | 1 | |
| 11 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | 1 | |
| 12 | 07 11 9 932 841 | CIRCLIP - D=6MM | 1 |
