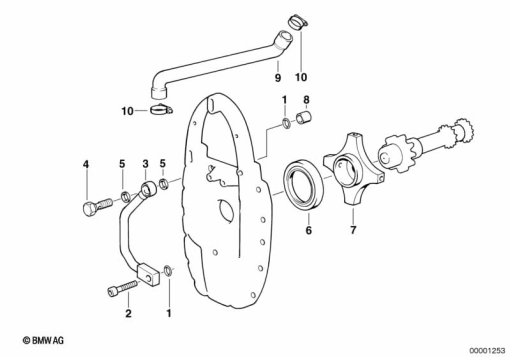

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 342 242 | O-RING - 10,5X1,5 (to 12/97) | 1 | |
| 2 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 (to 12/97) | 1 | |
| 3 | 11 11 1 341 854 | CONNECTING LINE (to 12/97) | 1 | |
| 4 | 07 11 9 917 533 | HOLLOW BOLT (to 12/97) | 1 | |
| 5 | 07 11 9 963 200 | GASKET RING - A14X18-AL (to 12/97) | 1 | |
| 6 | 11 11 1 341 850 | SHAFT SEAL - 40X62X7 (to 12/97) | 1 | |
| 7 | 11 31 1 341 134 | ROTOR (06/94 to 12/97) | 1 | |
| 8 | 11 12 1 726 238 | DOWEL - D=10,5MM (to 12/97) | 1 | |
| 9 | 11 15 1 341 813 | VENT HOSE (to 12/97) | 1 | |
| 10 | 61 68 1 386 662 | HOSE CLAMP - D=24MM (to 12/97) | 1 |
