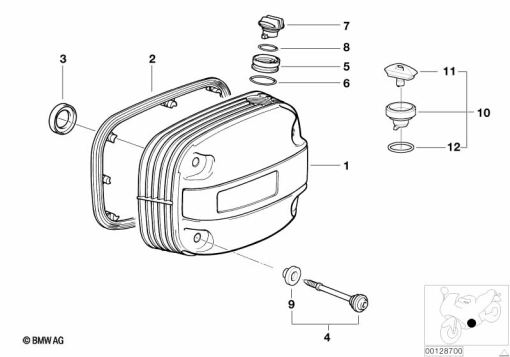

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 2 317 427 | CYLINDER HEAD COVER, CHROME, LEFT | - | |
11 12 2 317 428 | CYLINDER HEAD COVER, CHROME, RIGHTAlternative for position 1 | - | ||
11 12 7 676 475 | CYLINDER HEAD COVER WITH THREAD, LEFTAlternative for position 1 | - | ||
11 12 7 676 475 | CYLINDER HEAD COVER WITH THREAD, LEFTAlternative for position 1 | - | ||
11 12 7 676 476 | CYLINDER HEAD COVER WITH THREAD, RIGHTAlternative for position 1 | - | ||
| 2 | 11 12 1 341 708 | EXTERIOR GASKET | - | |
| 3 | 11 12 1 341 707 | INTERIOR GASKET | - | |
| 4 | 11 12 1 341 117 | SCREW - CHROME | - | |
11 12 7 654 223 | INNER HEX BOLT WITH BUSHAlternative for position 4 | - | ||
| 5 | 11 14 7 659 578 | FILLER PIPE | - | |
| 6 | 11 14 1 340 901 | O-RING | - | |
| 7 | 11 14 1 340 900 | OIL COVER LID | - | |
| 8 | 11 14 1 340 902 | O-RING - 18X4 | - | |
| 9 | 11 12 7 654 978 | RUBBER BUSH | - | |
| 10 | 71 60 7 674 505 | SET: OIL COVER LID, LOCKABLE - CHROM | - | |
| 11 | 71 60 7 674 506 | 0.02 | - | |
| 12 | 71 60 7 685 183 | O-RING - 17X4,5 | - |
