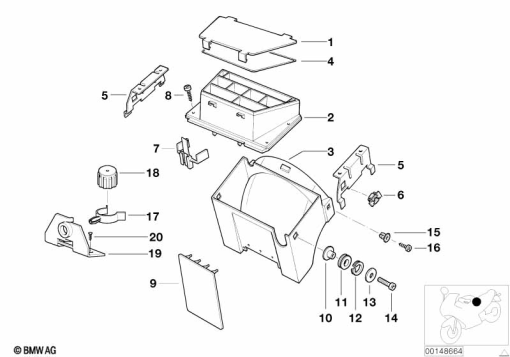

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 306 367 | FUSE BOX COVER | - | |
| 2 | 61 13 2 306 380 | FUSE BOX | - | |
| 3 | 61 13 2 306 222 | WIRING BOX | - | |
| 4 | 65 61 2 300 307 | GASKET - 1230MM | - | |
| 5 | 61 13 2 306 313 | BRACKET LEFT | - | |
61 13 2 306 314 | BRACKET RIGHTAlternative for position 5 | - | ||
| 6 | 07 12 9 926 512 | CAGE NUT - M6 | - | |
| 7 | 61 13 2 306 213 | ADAPTER | - | |
| 8 | 07 11 9 907 802 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,5X19-Z1 | - | |
| 9 | 61 13 2 306 227 | MUDGUARD | - | |
| 10 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 11 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 12 | 46 63 1 451 278 | INSERT | - | |
| 13 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 13 | - | ||
| 14 | 61 13 2 351 546 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 15 | 52 53 1 451 393 | EXPANDING NUT | - | |
| 16 | 07 11 9 904 186 | SHEET METAL SCREW - ST4,2X13 SW | - | |
| 17 | 11 53 1 726 298 | DIAGNOSIS PLUG BRACKET | - | |
| 18 | 61 13 2 306 793 | 0.02 | - |
