R1100GS (259E) | Electrical System

RETAINING CLIPS, LINE CLIPS

Diagram #61_6232 | 4 parts

100%

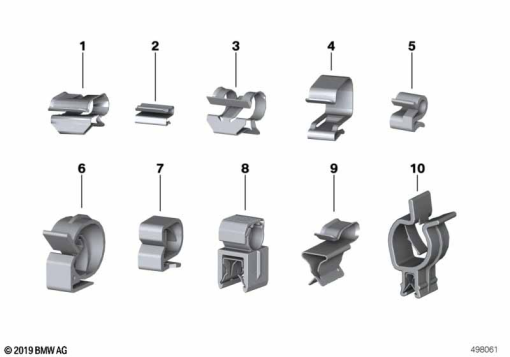

R1100GS (259E) RETAINING CLIPS, LINE CLIPS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
07 14 7 547 239
FIXING CLAMP - A=3,5 - 6,0MM1
2
07 14 7 566 122
FIXING CLAMP - A=4,0 - 4,5MM1
2
61 31 2 306 377
FIXING CLAMP - A=2.0-2.5MM1
3
11 78 7 650 156
FIXING CLAMP - D=10MM1
