Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 0 403 224 | BATTERY | - | |
61 21 2 346 800 | BATTERY, MAINTENANCE-FREE - 12V 19AHAlternative for position 1 | - | ||
| 2 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 3 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 4 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 5 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 6 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
| 8 | 01 40 2 306 238 | INSTRUCTIONS, MAINTENANCE-FREE BATTERY | - |

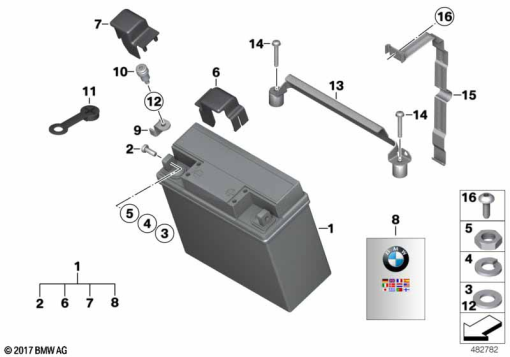

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
