R1100GS (259E) | Cooling

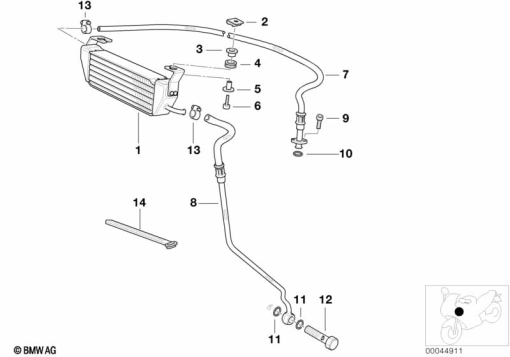

OIL COOLER/OIL COOLING PIPE
Diagram #17_0151 | 14 parts
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 2 325 525 | OIL COOLER (from 12/97) | - | |
| 2 | 07 12 9 904 886 | CAGE NUT - M6-6-ZNS3 (from 12/97) | - | |
| 3 | 46 63 1 455 425 | NUT HOLDER (from 12/97) | - | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET (from 12/97) | - | |
| 5 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 (from 12/97) | - | |
| 6 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 (from 12/97) | - | |
| 7 | 17 22 1 342 642 | OIL COOLING PIPE INLET (from 12/97) | - | |
| 8 | 17 22 1 342 644 | SILVER OIL PIPE OUTLET (from 12/97) | - | |
17 22 1 342 645 | BLACK OIL PIPE OUTLET (from 12/97)Alternative for position 8 | - | ||
| 9 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 10 | 17 22 1 342 487 | O-RING - 19X4 (from 12/97) | - | |
| 11 | 07 11 9 963 252 | GASKET RING - A16X20-AL (from 12/97) | - | |
| 12 | 32 41 6 852 470 | HOLLOW BOLT - M16X28 | - | |
| 14 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
