R100R (2473) | Wheels

WHEEL HUB REAR

Diagram #36_0170 | 5 parts | 2 available in shop

100%

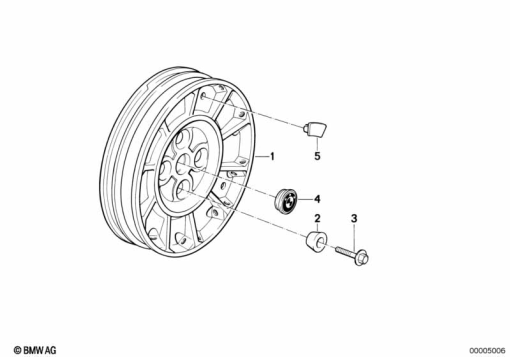

R100R (2473) WHEEL HUB REAR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
36 31 1 452 733
WHEEL HUB REAR1
2
36 13 2 302 339
CONICAL RING1
3
36 31 2 333 226
WHEEL BOLT - M12X1,5X601
4
36 31 1 242 142
CAP - D=27MM1
5
36 31 1 458 284
BLIND PLUG1
