Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 1 455 412 | IGNITION/LIGHT SWITCH | - | |
ELA55412 | IGN. SWITCH BLACK PLUGAlternative for position 1 | - | ||
| 2 | 51 25 1 455 411 | IGNITION/LIGHT SWITCH - CODE | - | |
| 3 | 51 25 1 243 274 | STEERING LOCK | - | |
| 4 | 51 25 1 243 499 | STEERING LOCK - CODE | - | |
| 5 | 51 25 1 242 378 | DUAL SEAT LOCK | - | |
SEA42378A | Push button lockAlternative for position 5 | - | ||
| 6 | 51 25 1 242 327 | DUAL SEAT LOCK WITH CODE | - | |
| 9 | 51 25 2 307 166 | LOCK CYLINDER WITH KEY | - | |
| 10 | 51 25 2 307 173 | FILLER CAP LOCK (WITH KEY CODE) | - |

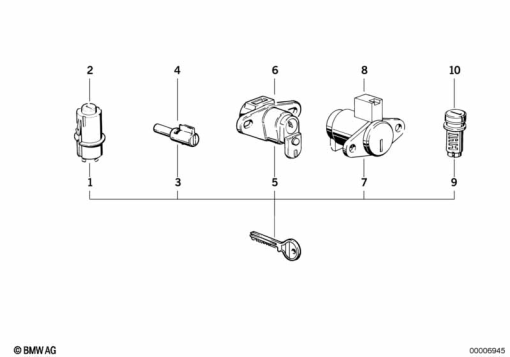

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
