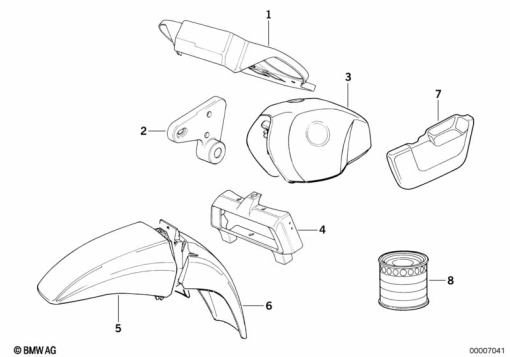

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 324 817 | DASHBOARD SUPPORT - AVUSBLACK | - | |
| 2 | 46 63 2 324 819 | COVERING LEFT - AVUSBLACK | - | |
46 63 2 324 820 | COVERING RIGHT - AVUSBLACKAlternative for position 2 | - | ||
| 3 | 16 11 2 324 790 | FUEL TANK - AVUSBLACK | - | |
| 4 | 11 42 2 324 818 | TRIM PANEL - AVUSBLACK | - | |
| 5 | 46 61 1 455 360 | FRONT MUDGUARD - AVUS-BLACK | - | |
| 6 | 46 61 1 455 368 | FRONT MUD GUARD, REAR - AVUS-BLACK | - | |
| 7 | 46 63 2 324 815 | BATTERY COVER LEFT - AVUSBLACK | - | |
46 63 2 324 816 | BATTERY COVER RIGHT - AVUSBLACKAlternative for position 7 | - | ||
| 8 | 51 91 1 052 618 | HS ACRYLIC PAINT BLACK - 1000ML 086 | - | |
51 91 1 240 265 | RULING INK WHITE - 250ML 101Alternative for position 8 | - |
