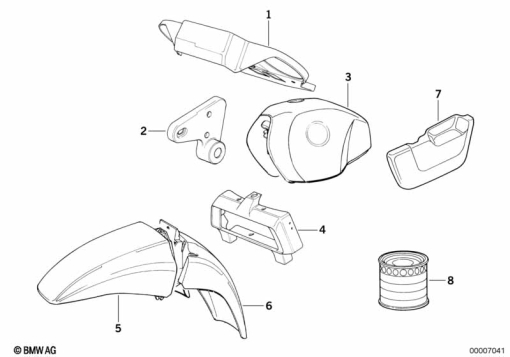

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 307 237 | DASHBOARD SUPPORT - WHITEALU 265 | - | |
| 2 | 46 63 2 307 241 | COVERING LEFT - WHITEALU | - | |
46 63 2 307 242 | COVERING RIGHT - WHITEALUAlternative for position 2 | - | ||
| 3 | 16 11 2 322 752 | FUEL TANK - AMETHYST | - | |
| 4 | 11 42 2 323 155 | TRIM PANEL - AMETHYST | - | |
| 5 | 46 61 2 323 156 | FRONT MUDGUARD - AMETHYST | - | |
| 6 | 46 61 2 323 157 | FRONT MUD GUARD, REAR - AMETHYST | - | |
| 7 | 46 63 2 323 161 | BATTERY COVER LEFT - AMETHYST | - | |
46 63 2 323 162 | BATTERY COVER RIGHT - AMETHYSTAlternative for position 7 | - | ||
| 8 | 51 91 2 323 024 | METALLIC PAINT SET AMETHYST - 250ML 284 | - | |
51 91 2 323 028 | METALLIC PAINT SET AMETHYST - 1000ML 284Alternative for position 8 | - |
