R100R (2473) | Seat
BENCH SEAT

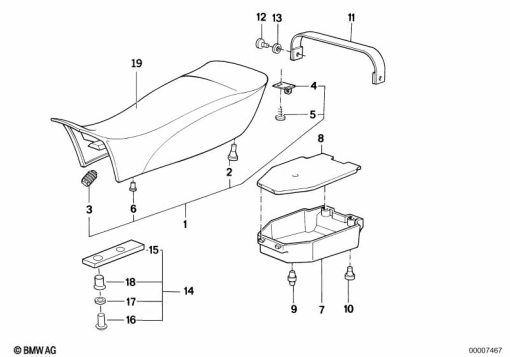

Diagram #52_1019 | 23 parts
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 2 307 400 | DOUBLE SEAT BENCH - GRAY/BLACK | - | |
52 53 2 307 455 | DOUBLE SEAT BENCH - GRAY/FLASHGREENAlternative for position 1 | - | ||
52 53 2 324 830 | DOUBLE SEAT BENCH - BLACKAlternative for position 1 | - | ||
| 2 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | - | |
52 53 1 236 128 | BUMP STOP - H=10Alternative for position 2 | - | ||
| 3 | 51 23 1 852 347 | STOP BUFFER | - | |
| 4 | 52 53 2 307 192 | HOLDER | - | |
| 5 | 07 11 9 907 943 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13-Z1 | - | |
07 11 9 904 310 | SHEET METAL SCREW - 4,2X13Alternative for position 5 | - | ||
| 6 | 07 12 9 948 747 | BLIND RIVET - 3,2 2A | - | |
| 7 | 51 16 1 456 181 | TOOL BOX | - | |
| 8 | 51 16 1 452 427 | COVER | - | |
| 9 | 52 53 2 323 001 | SUPPORT | - | |
| 10 | 51 16 1 452 421 | BUMP STOP | - | |
| 11 | 52 53 2 323 548 | STRAP - LIGHTGRAY | - | |
| 14 | 52 53 2 307 170 | SET: INSTALLATION KIT | - | |
| 15 | 52 53 1 456 118 | HOLDER | - | |
| 16 | 52 53 2 307 171 | RIVET | - | |
| 17 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 18 | 07 11 9 949 632 | RIVET - A6X0.4X8-CU | - | |
| 19 | 52 53 2 307 399 | SEAT COVER - GRAY/BLACK | - | |
52 53 2 307 456 | SEAT COVER - GRAY/FLASHGREENAlternative for position 19 | - | ||
52 53 2 324 832 | SEAT COVER - BLACKAlternative for position 19 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
