R100R (2473) | Navigation & Alarm
ALARM SYSTEMS

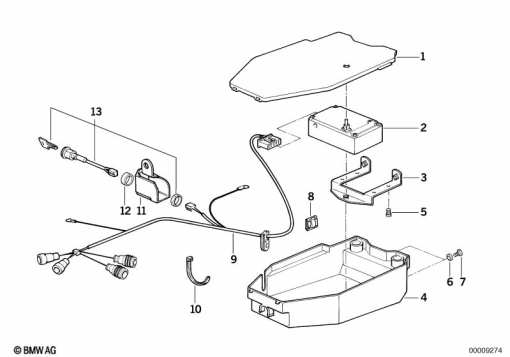

Diagram #65_0333 | 13 parts
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 16 2 315 481 | COVER - DWA | - | |
| 2 | 65 75 2 315 540 | CONTROL UNIT | - | |
| 3 | 65 75 2 315 740 | BRACKET, CONTROL UNIT | - | |
| 4 | 51 16 2 315 480 | TOOL BOX - DWA | - | |
| 5 | 07 11 9 907 657 | FILLISTER HEAD SCREW - M4X6 | - | |
| 6 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 7 | 07 11 9 913 218 | HEX BOLT - M5X10 | - | |
| 8 | 61 13 1 361 243 | TUBING SUPPORT | - | |
| 9 | 61 12 2 315 802 | WIRING THEFT ALARM | - | |
| 10 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 11 | 61 31 2 315 744 | SWITCH SUPPORT | - | |
| 12 | 65 75 2 300 204 | RING | - | |
| 13 | 65 75 2 300 200 | LOCK | - |
