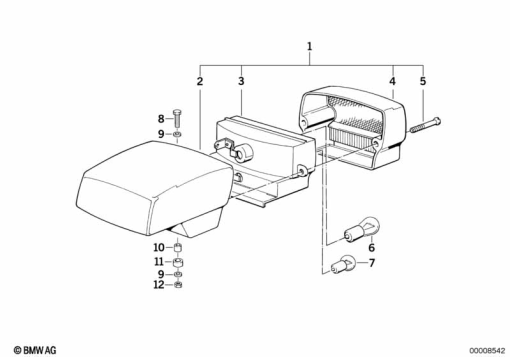

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 1 243 756 | REAR LIGHT - OLSA | - | |
| 2 | 63 21 1 243 686 | HOUSING - LIGHTA | - | |
63 21 1 243 759 | HOUSING - OLSAAlternative for position 2 | - | ||
| 3 | 63 21 1 243 685 | BULB SOCKET - LIGHTA | - | |
63 21 1 243 685.1 | LED tail light 79-95Alternative for position 3 | - | ||
63 21 1 243 760 | BULB SOCKET - OLSAAlternative for position 3 | - | ||
| 4 | 63 21 1 243 684 | LENS - LIGHTA | - | |
63 21 1 243 758 | LENS - OLSAAlternative for position 4 | - | ||
| 5 | 63 21 1 243 687 | FILLISTER HEAD SELF-TAPPING SCREW | - | |
| 6 | 07 11 9 905 511 | LONGLIFE BULB - 12V 21/5W | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 6 | - | ||
| 7 | 07 11 9 905 336 | BULB - 12V 5W | - | |
07 11 9 978 227 | BULBAlternative for position 7 | - | ||
| 8 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | - | |
| 9 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 9 | - | ||
| 10 | 31 42 1 232 242 | BUSH | - | |
| 11 | 31 42 1 235 615 | RUBBER GROMMET | - | |
| 12 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 12 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 12 | - |
