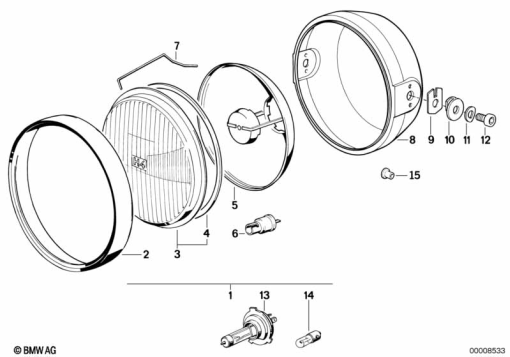

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 63 12 1 356 402 | SUPPORTING RING | - | |
63 12 1 356 402R | headlight chrome ring boschAlternative for position 2 | - | ||
| 3 | 63 12 1 358 147 | SET: INSTALLING SET LAMP LENS | - | |
63 12 1 358 148 | SET: INSTALLING SET LAMP LENSAlternative for position 3 | - | ||
| 4 | 63 12 1 356 403 | GASKET | - | |
| 5 | 63 12 1 355 396 | REFLECTOR | - | |
63 12 1 357 919 | REFLECTORAlternative for position 5 | - | ||
| 6 | 62 14 8 680 130 | BULB SOCKET | - | |
| 7 | 63 12 1 357 468 | CLIP | - | |
| 8 | 63 12 1 459 815 | HEADLAMP HOUSING - CHROM | - | |
63 12 7 659 003 | HEADLAMP HOUSING - CHROMAlternative for position 8 | - | ||
| - | 63 12 1 358 129 | RUBBER WASHER | - | |
| 10 | 63 12 1 358 129 | RUBBER WASHER | - | |
| 11 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 12 | 36 31 7 709 543 | OVAL HEAD SCREW - M8X25-10.9 ZNS3 | - | |
63 12 1 244 379 | HEX BOLTAlternative for position 12 | - | ||
| 13 | 63 12 1 354 619 | BULB - H4 | - | |
| 14 | 07 50 9 063 576 | BULB - 12V 4W | - | |
07 11 9 978 256 | BULBAlternative for position 14 | - | ||
07 11 9 978 2561 | PARKING BULBAlternative for position 14 | - | ||
63 12 1 356 105 | BULB YELLOW - H4Alternative for position 14 | - | ||
| 15 | 63 12 1 244 763 | BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
