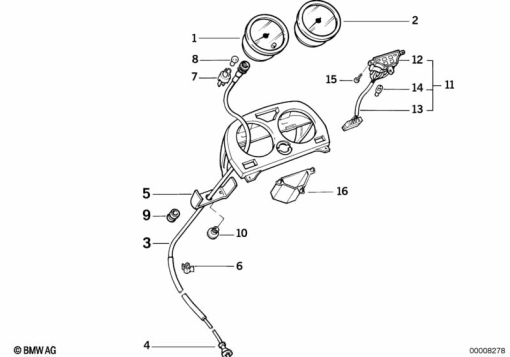

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 12 1 244 772 | SPEEDOMETER - MPH W=1,148 | - | |
| 2 | 62 13 1 244 784 | REVOLUTION COUNTER | - | |
| 3 | 62 12 1 357 731 | SPEEDO CABLE | - | |
| 4 | 61 13 8 080 160 | RUBBER GROMMET | - | |
| 5 | 46 63 2 315 114 | 0.13 | - | |
| 6 | 24 51 1 205 837 | HOLDER | - | |
| 7 | 62 12 1 244 626 | BULB SOCKET | - | |
| 8 | 07 11 9 978 256 | BULB | - | |
07 11 9 978 2561 | PARKING BULBAlternative for position 8 | - | ||
07 50 9 063 576 | BULB - 12V 4WAlternative for position 8 | - | ||
| 9 | 62 12 1 244 575 | RUBBER GROMMET | - | |
| 10 | 62 12 1 244 726 | KNURLED HEAD NUT - M5 | - | |
| 11 | 62 14 1 244 783 | TELL-TALE | - | |
| 13 | 61 12 1 244 782 | WIRING CONTROL | - | |
| 14 | 62 14 1 244 727 | BULB | - | |
| 15 | 62 14 1 244 766 | SCREW - 3,5X20 | - | |
| 16 | 62 14 1 244 762 | COVERING CAP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
