R100R (2473) | Instruments Dash

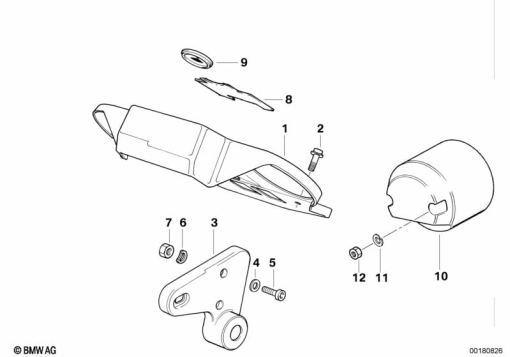

DASHBOARD MOUNTING PARTS
Diagram #62_0508 | 21 parts | 2 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 307 381 | INSTRUMENT PANEL, PRIMED | 1 | |
| 1 | 46 63 2 316 116 | DASHBOARD SUPPORT, CHROME | 1 | |
| 1 | 46 63 2 324 817 | DASHBOARD SUPPORT - AVUSBLACK | 1 | |
| 2 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 | 1 | |
| 3 | 46 63 2 307 385 | COVERING LEFT PRIMED | 1 | |
| 3 | 46 63 2 307 386 | COVER, PRIMED, RIGHT | 1 | |
| 4 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 5 | 46 54 2 322 498 | FILLISTER-HEAD SCREW - M6X18 | 1 | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 6 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 6 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 6 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 7 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | 1 | |
| 7 | 07 12 9 905 817 | HEX NUT | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 8 | 46 63 2 316 291 | FOIL | 1 | |
| 9 | 51 14 2 308 800 | BADGE - D=21MM | 1 | |
| 10 | 62 21 1 244 761 | COVERING CAP | 1 | |
| 11 | 07 11 9 932 098 | WAVE WASHER - B5 | 1 | |
| 12 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | 1 |
