R100R (2473) | Fuel Preparation

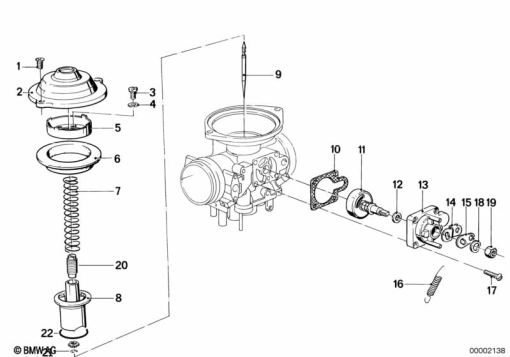

CARBURETOR CAP/PISTON/STARTER HOUSING
Diagram #13_0462 | 23 parts | 2 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 337 361 | CSK.FILLISTER HEAD SREW | 1 | |
| 2 | 13 11 1 337 360 | COVER | 1 | |
| 2 | 13 11 2 316 117 | LID CHROME-PLATED | 1 | |
| 3 | 13 11 1 337 359 | FILLISTER-HEAD SCREW | 1 | |
| 5 | 13 11 1 337 358 | SUPPORTING RING | 1 | |
| 6 | 13 11 1 254 774 | DIAPHRAGM | 1 | |
| 7 | 13 11 1 338 134 | SLUICE VALVE SPRING | 1 | |
| 8 | 13 11 1 338 248 | PISTON | 1 | |
| 9 | 13 11 1 337 692 | NOZZLE NEEDLE | 1 | |
| 10 | 13 11 1 256 353 | GASKET | 1 | |
| 11 | 13 11 1 338 515 | WELLE STARTERKÖRPER LEFT | 1 | |
| 11 | 13 11 1 338 516 | WELLE STARTERKÖRPER RIGHT | 1 | |
| 12 | 13 11 1 257 819 | GASKET RING | 1 | |
| 13 | 13 11 1 338 517 | CHOKE BODY LEFT | 1 | |
| 13 | 13 11 1 338 518 | CHOKE BODY RIGHT | 1 | |
| 14 | 13 11 1 337 368 | LEVER | 1 | |
| 15 | 13 11 1 337 369 | LEVER | 1 | |
| 16 | 13 11 1 337 370 | TENSION SPRING | 1 | |
| 17 | 13 11 1 337 367 | CSK.FILLISTER HEAD SREW | 1 | |
| 18 | 13 11 1 254 759 | WAVE WASHER | 1 | |
| 19 | 13 11 1 254 760 | 13 11 1 254 760 | 2 | |
| 20 | 13 11 1 338 241 | SCREW PLUG | 1 | |
| 21 | 13 11 1 338 242 | CLAMPING SPRING | 1 |
