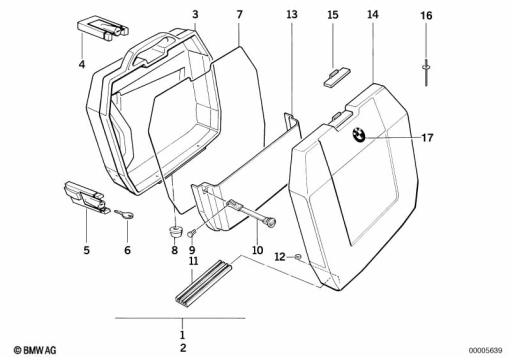

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 585 | SET: CITYCASE - BLACK | 1 | |
| 2 | 46 54 2 316 595 | CITYCASE LEFT - BLACK | 1 | |
| 2 | 46 54 2 316 596 | CITYCASE RIGHT - BLACK | 1 | |
| 3 | 46 54 2 316 683 | HOUSING BOTTOM LEFT | 1 | |
| 3 | 46 54 2 316 684 | HOUSING BOTTOM RIGHT | 1 | |
| 4 | 46 54 2 303 640 | CASE CATCH | 1 | |
| 5 | 46 54 2 303 652 | CASE SUSPENSION CATCH | 1 | |
| 7 | 46 54 2 300 042 | GASKET - 5X1560MM | 1 | |
| 8 | 46 54 2 300 044 | SET: PAD | 1 | |
| 9 | 51 16 1 828 956 | 0.01 | 1 | |
| 10 | 51 16 1 904 471 | JOINT LINK | 1 | |
| 11 | 46 54 2 300 039 | HINGE | 1 | |
| 12 | 07 11 9 936 410 | WASHER - 3,7 | 1 | |
| 14 | 46 54 2 316 682 | COVER - BLACK | 1 | |
| 15 | 46 54 2 303 642 | HOOK | 1 | |
| 16 | 46 54 2 316 691 | SET: SET OF BOTTOM PART RIVETS | 1 | |
| 16 | 46 54 2 316 692 | SET: SET OF COVER RIVETS | 1 | |
| 17 | 51 14 2 303 355 | BADGE - BMW | 1 |
