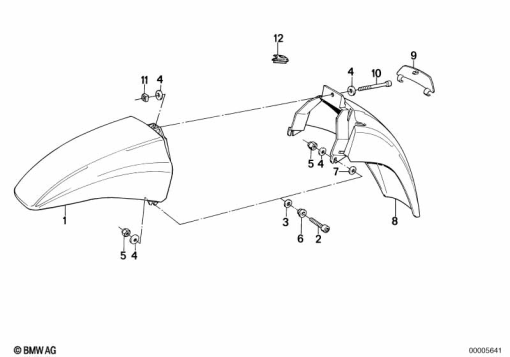

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 309 732 | FRONT WHEEL FENDER - ROHTEIL / BLANK | - | |
| 2 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 3 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 4 | 07 11 9 936 640 | WASHER - V8,4 | - | |
| 5 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 5 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 5 | - | ||
| 6 | 63 14 1 459 169 | BUSH | - | |
| 7 | 46 61 1 453 999 | WASHER - 6,4X15X3-ZNS3 | - | |
| 8 | 46 61 1 453 967 | FRONT MUDGUARD, PRIMED REAR | - | |
| 9 | 46 61 1 455 074 | COVERING CAP | - | |
| 11 | 07 11 9 904 050 | SQUARE NUT - M6 | - | |
| 12 | 34 32 1 455 018 | GROMMET, RIGHT | - | |
34 32 2 310 196 | PLUGAlternative for position 12 | - | ||
34 32 2 312 695 | LEFT RUBBER SOCKETAlternative for position 12 | - | ||
34 32 2 312 696 | GROMMET, RIGHTAlternative for position 12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
