R100R (2473) | Exhaust System
EXHAUST SYSTEM

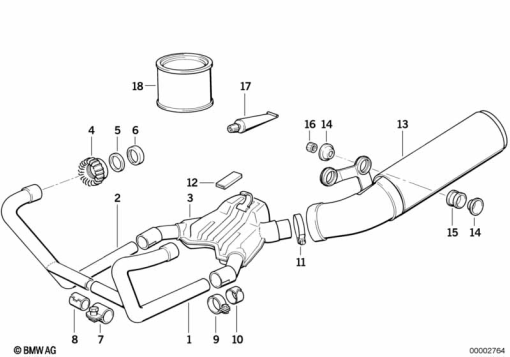

Diagram #18_0281 | 20 parts
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 11 1 452 399 | EXHAUST PIPE LEFT | - | |
| 2 | 18 11 1 452 500 | EXHAUST PIPE, RIGHT | - | |
| 3 | 18 12 1 338 724 | FRONT MUFFLER | - | |
| 4 | 18 21 1 234 721 | NUT - M52X2 | - | |
18 21 2 316 145 | NUT - M52X2-CRAlternative for position 4 | - | ||
| 5 | 18 21 1 230 585 | COMPRESSION RING | - | |
| 6 | 18 21 1 230 586 | CLAMP RING | - | |
| 7 | 18 21 1 454 638 | MUFFLER CLAMP - D=27 | - | |
| 8 | 18 21 1 454 639 | GASKET | - | |
| 9 | 18 21 1 457 663 | LEFT MUFFLER CLAMP - D=41 | - | |
18 21 1 457 664 | RIGHT MUFFLER CLAMP - D=41Alternative for position 9 | - | ||
| 10 | 18 21 2 331 956 | GASKET | - | |
| 11 | 18 21 1 454 381 | MUFFLER CLAMP - LEFT D=49 | - | |
| 12 | 18 21 1 457 940 | 0.01 | - | |
| 13 | 18 12 9 062 482 | REAR MUFFLER | - | |
| 14 | 18 21 1 461 923 | WASHER | - | |
| 15 | 18 21 1 461 922 | GROMMET | - | |
| 16 | 33 17 1 237 789 | 0.01 | - | |
33 17 1 237 7891 | CAD PLATED NUTAlternative for position 16 | - | ||
| 17 | 18 21 9 062 599 | ASSEMBLING PASTE - 100G | - |
