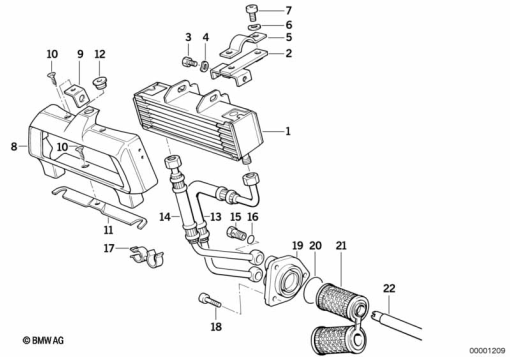

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 1 338 771 | OIL COOLER | - | |
| 2 | 11 42 1 335 763 | 0.19 | - | |
| 3 | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIVAlternative for position 3 | - | ||
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
| 5 | 11 42 1 335 389 | CLAMP | - | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 7 | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | - | |
07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3Alternative for position 7 | - | ||
07 11 9 904 101 | SCREWAlternative for position 7 | - | ||
| 8 | 11 42 2 307 398 | TRIM PANEL PRIMED | - | |
| 9 | 11 42 1 335 987 | SUPPORT | - | |
| 10 | 63 17 1 239 941 | COUNTERSUNK HEAD SCREW - M4X8-4.8-ZN SW (to 07/92) | - | |
07 11 9 928 426 | CSK.FILLISTER HEAD SREW - M4X12 (from 07/92)Alternative for position 10 | - | ||
46 63 1 451 616 | WASHERAlternative for position 10 | - | ||
| 11 | 11 42 1 338 774 | HOLDER | - | |
| 12 | 51 71 1 130 780 | BLIND PLUG | - | |
| 13 | 11 42 1 338 717 | OIL COOLER LINE FEED | - | |
| 14 | 11 42 1 338 718 | OIL COOLER LINE RETURN | - | |
| 15 | 11 42 1 338 506 | HOLLOW BOLT | - | |
| 16 | 11 42 1 338 783 | GASKET RING - A12X15.5 | - | |
| 17 | 11 42 1 338 637 | HOSE CLAMP | - | |
| 18 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 19 | 11 42 1 338 511 | OIL FILTER HEAD | - | |
| 20 | 11 42 1 264 160 | O-RING - 44X4 | - | |
| 21 | 11 42 1 337 575 | OIL FILTER OIL COOLER | - | |
| 22 | 11 42 1 335 387 | OIL COOLER PIPE - L=162MM | - |
