R100R (2473) | Engine

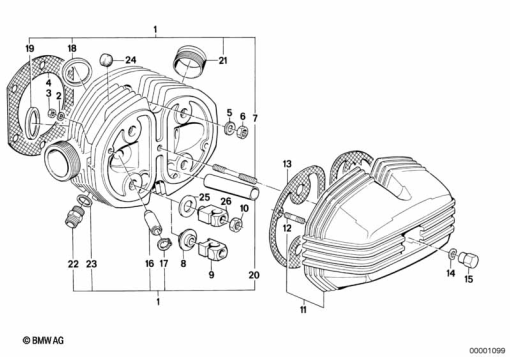

CYLINDER HEAD / COVER / GASKETS
Diagram #11_1692 | 36 parts | 4 available in shop
100%
Parts List (36)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 1 338 395 | CYLINDER HEAD LEFT - SLS | 1 | |
| 1 | 11 12 1 338 396 | CYLINDER HEAD RIGHT - SLS | 1 | |
| 2 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 2 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 2 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 2 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 3 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 | |
| 4 | 11 12 1 338 715 | CYLINDER HEAD GASKET ASBESTOS-FREE | 1 | |
| 5 | 11 12 1 336 872 | WASHER - 3,5 ZNS | 1 | |
| 6 | 11 11 1 263 903 | HEX NUT | 1 | |
| 7 | 07 12 9 908 142 | STUD BOLT - M8X70 | 1 | |
| 10 | 11 12 7 650 402 | HEX NUT - M10 | 1 | |
| 11 | 11 12 1 250 240A | VALVE COVER | 1 | |
| 11 | 11 12 1 250 240 | CYLINDER HEAD COVER | 1 | |
| 11 | 1112240 | V/C CLASSIC 2 VALVE BOXER | 1 | |
| 11 | 11 12 2 316 120 | CYLINDER HEAD COVER - CHROME | 1 | |
| 12 | 07 12 9 904 546 | STUD BOLT - M6X40 | 1 | |
| 13 | 11 12 1 338 426 | GASKET - ASBESTFREI | 1 | |
| 14 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 15 | 11 12 0 023 160 | TAPPET COVER CAP NUT SS | 1 | |
| 15 | 11 12 1 744 330 | CAP NUT - M8-CR | 1 | |
| 15 | 11 12 1 744 330.1 | TAPPET CVR NUT | 1 | |
| 16 | 11 12 1 338 708 | VALVE GUIDE - 14.06 | 1 | |
| 16 | 11 12 1 338 711 | VALVE GUIDE - 14.25 | 1 | |
| 17 | 11 12 1 744 332 | LOCK RING | 1 | |
| 18 | 11 12 1 338 316 | VALVE SEAT RING INTAKE - +0.2 | 1 | |
| 18 | 11 12 1 338 317 | VALVE SEAT RING INTAKE - +0.4 | 1 | |
| 19 | 11 12 1 338 308 | VALVE SEAT INSERT EXHAUST LEAD-FREE - +0.2 | 1 | |
| 19 | 11 12 1 338 309 | VALVE SEAT INSERT EXHAUST LEAD-FREE - +0.4 | 1 | |
| 20 | 11 12 1 262 259 | PROTECTION TUBE | 1 | |
| 21 | 11 12 1 257 396 | CONNECTOR - 64/32 - M42X1.5 | 1 | |
| 22 | 07 11 9 972 501 | CONNECTOR - 10X16 | 1 | |
| 23 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 24 | 11 12 1 337 818 | PUSHROD SEAL | 1 | |
| 25 | 11 12 1 337 868 | BASE | 1 | |
| 26 | 11 12 1 337 867 | SUPPORT FOR ROCKER ARM SHAFT | 1 |
