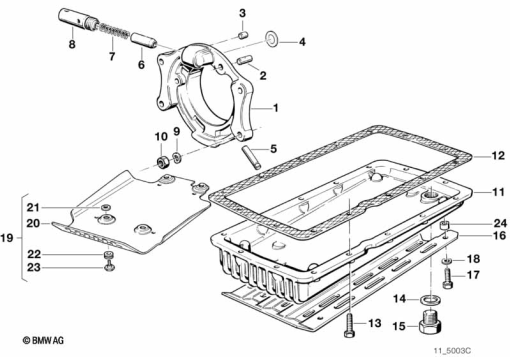

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 337 293 | BEARING COVER | - | |
| 2 | 07 11 9 942 050 | DOWEL PIN - 4X10 | - | |
| 3 | 11 11 1 744 326 | PLUG | - | |
| 4 | 07 11 9 932 412 | COVER LID - D=16MM | - | |
| 5 | 11 11 1 253 184 | 0.03 | - | |
| 6 | 11 42 1 271 320 | PISTON | - | |
| 7 | 11 41 1 744 324 | COMPRESSION SPRING | - | |
| 8 | 11 11 1 335 299 | HOLLOW BOLT | - | |
| 9 | 07 11 9 932 093 | WAVE WASHER - B8 | - | |
07 11 9 932 095 | WAVE WASHERAlternative for position 9 | - | ||
| 10 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 02/96) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 10 | - | ||
| 11 | 11 13 1 338 620 | OIL PAN | - | |
| 12 | 11 13 1 338 427 | GASKET | - | |
11 13 1 338 427S | GASKET OIL PANAlternative for position 12 | - | ||
| 13 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | - | |
| 14 | 07 11 9 963 300 | GASKET RING - A18X22-AL | - | |
| 15 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | - | |
07 11 9 905 428M | DRAIN PLUG W/ MAGNETAlternative for position 15 | - |
