R100R (2473) | Engine Electrics
STARTER SINGLE PARTS / D6RA15

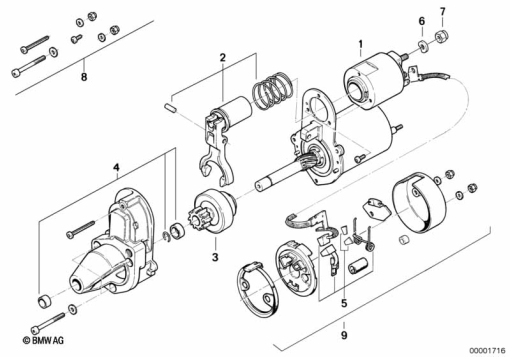

Diagram #12_0764 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 1 244 607 | SOLENOID SWITCH | 1 | |
| 2 | 12 41 1 244 609 | CLUTCH REL.FORK LEVER | 1 | |
| 3 | 12 41 1 244 682 | STARTER PINION | 1 | |
| 4 | 12 41 1 244 611 | SET: REPAIR KIT FOR STARTER | 1 | |
| 5 | 12 41 1 244 684 | SET: CARBON BRUSH SET | 1 | |
| 6 | 12 41 1 244 623 | SPRING WASHER | 1 | |
| 7 | 12 41 1 244 622 | HEX NUT - M8-8 CU | 1 | |
| 8 | 12 41 1 244 613 | SET: REPAIR KIT SCREWS | 1 |
