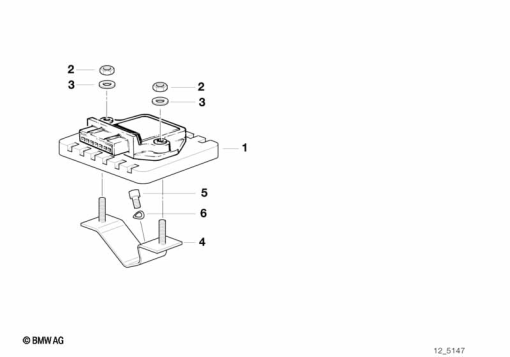

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 14 1 244 191 | REPLACEMENT CONTROL UNIT | - | |
12 14 2 325 284 | IGNITION CONTROL UNITAlternative for position 1 | - | ||
61 31 1 244 832 | IGNITION CONTROL UNIT BRACKETAlternative for position 1 | - | ||
| 2 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV | - | |
07 11 9 904 206 | WASHER - 10X5,3X1-200 HVAlternative for position 2 | - | ||
07 11 9 905 710 | HEX NUT - M5Alternative for position 2 | - | ||
07 11 9 932 072 | WAVE WASHER - B6Alternative for position 2 | - | ||
07 11 9 905 710 | HEX NUT - M5Alternative for position 2 | - | ||
| 3 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
| 4 | 61 31 1 244 832 | IGNITION CONTROL UNIT BRACKET | - | |
| 5 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV | - | |
| 6 | 07 11 9 932 072 | WAVE WASHER - B6 | - |
