R100R (2473) | Electrical System

BATTERY

Diagram #61_0252 | 24 parts

100%

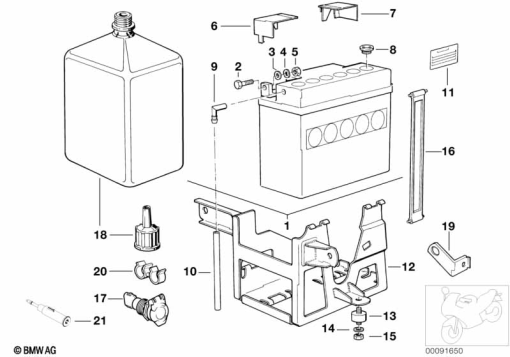

R100R (2473) BATTERY exploded view parts diagram

Parts List (24)

#Part NumberDescriptionQty
1
53030
YUASA BATTERY-
61 21 1 459 650
EMPTY BATTERY - 12V 25AHAlternative for position 1-
2
61 21 1 459 655
HEX BOLT - M6X20-
3
61 21 1 459 657
WASHER - A6,4-
4
61 21 7 670 327
SPRING WASHER - B6-
5
61 21 1 459 656
HEX NUT - M6-
7
61 21 1 459 099
COVERING CAP - + POL-
8
61 21 1 459 106
BLIND PLUG-
9
61 21 1 459 743
HOSE CONNECTOR-
10
61 21 2 306 299
HOSE - 1000 MM-
11
51 14 1 459 227
LABEL "BATTERY"-
12
61 21 1 244 546
BATTERY HOLD DOWN-
13
61 21 1 233 028
RUBBER MOUNTING-
61 21 2 305 050
RUBBER MOUNTINGAlternative for position 13-
FRA33028
RUB. MNT. BAT BOX 8-15-8MMAlternative for position 13-
14
07 11 9 904 202
WASHER - A6,4-ZNNIV SI-
15
07 11 9 905 543
HEX NUT - M6-8-ZNNIV SI-
16
61 21 1 243 562
TENSION STRAP-
17
61 13 1 391 630
PLUG-IN SOCKET-
18
61 21 9 056 972
BATTERY ACID PARCEL (6 BOTTLES) - 25AH-30AH-
19
46 52 2 314 018
HOLDER-
20
13 90 1 720 201
HOSE CLAMP-
61 21 1 244 557
HOSE CLAMPAlternative for position 20-
21
61 13 8 060 106
PLUG HOUSING-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
