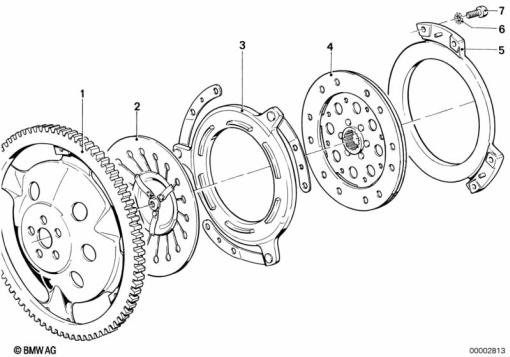

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 1 338 722 | CLUTCH HOUSING | - | |
| 2 | 21 21 1 338 508 | DIAPHRAGM SPRING | - | |
| 3 | 21 21 2 302 200 | PLATE | - | |
| 4 | 21 21 1 451 512 | CLUTCH PLATE | - | |
21 21 1 451 512.S | CLUTCH PLT 5.5MM SINTERED REINAlternative for position 4 | - | ||
| 5 | 21 21 1 457 280 | HOUSING COVER | - | |
| 6 | 21 21 1 242 377 | WASHER - A7,4 | - | |
| 7 | 21 21 1 338 680 | FILLISTER-HEAD SCREW - M7X18-8.8 | - |
