Parts List (18)

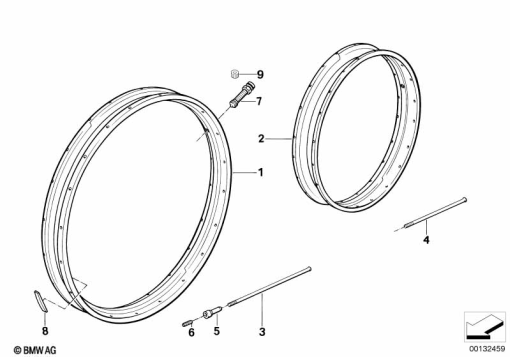

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 458 444 | WHEEL RIM FRONT - 1,85X21 MT H2 | - | |
| 2 | 36 31 1 458 443 | WHEEL RIM REAR - 2,50X17 MT H2 | - | |
| 3 | 36 31 1 452 726 | SPOKE FRONT | - | |
| 4 | 36 31 1 234 592 | SPOKE SET SS | - | |
36 31 1 452 737 | SPOKE - L=153MMAlternative for position 4 | - | ||
36 31 1 452 737SET1 | 153MM SPOKE SET STAINLESSAlternative for position 4 | - | ||
| 5 | 36 31 1 452 727 | NIPPLE - M4 | - | |
| 6 | 07 11 9 906 097 | GRUB SCREW - M4X5 | - | |
| 7 | 36 31 7 653 064 | VALVE - D=15MM | - | |
36 32 1 452 748 | VALVE - D=8MMAlternative for position 7 | - | ||
| - | 07 11 9 931 697 | WASHER - 8,4 | - | |
| - | 07 11 9 904 826 | Washer | - | |
| 8 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 8 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 8 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 8 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 8 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 8 | - |
