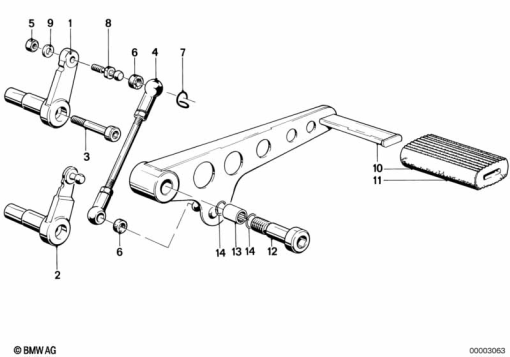

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 23 31 2 302 227 | SHIFT LEVER | - | |
| 3 | 23 11 2 322 402 | FILLISTER-HEAD SCREW - M6X80 | - | |
| 4 | 23 41 7 710 572 | SELECTOR ROD - L=101MM | - | |
| 5 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 6 | 23 41 7 650 149 | PLASTIC BUSH | - | |
| 7 | 07 11 9 987 611 | SAFETY CLIP - S10 | - | |
| 8 | 07 11 9 901 736 | BALL PIN | - | |
| 9 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 9 | - | ||
| 10 | 23 41 1 242 304 | SHIFT LEVER | - | |
| - | 23 41 1 338 639 | SCREW - 39,5 | - | |
| 11 | 23 31 1 232 097 | BUSHING | - | |
| 12 | 23 41 1 338 639 | SCREW - 39,5 | - | |
| 13 | 23 41 2 302 382 | BUSHING - 18X18X12 | - | |
| 14 | 23 41 2 302 380 | GASKET RING - 12X3 | - |
