R100GS (47E1) | Transmission

5-GEAR TRANSMISSION

Diagram #23_0248 | 3 parts

100%

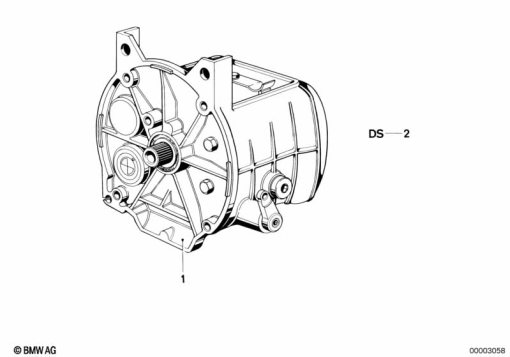

R100GS (47E1) 5-GEAR TRANSMISSION exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
23 00 1 338 461
5-GEAR TRANSMISSION1
1
23 00 1 338 468
5-SPEED TRANSMISSION WITH KICK STARTER1
2
23 00 1 338 597
SET: GASKET SET FIVE SPEED GEARBOX1
