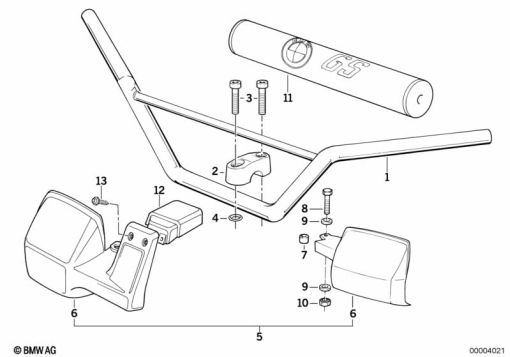

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 303 272 | HANDLEBAR HEATED GRIP, BLACK | - | |
| 2 | 31 42 1 458 055 | CLAMP SUPPORT, BLACK, UPPER | - | |
| 3 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | - | |
| 4 | 46 71 1 451 942 | RING | - | |
| 5 | 71 60 2 303 496 | SET: RETROFIT KIT, HAND GUARD, WHITE | - | |
71 60 9 062 160 | SET: RETROFIT KIT HAND PROTECTION BLACKAlternative for position 5 | - | ||
| 6 | 71 60 2 303 471 | HAND GUARD, WHITE, LEFT | - | |
71 60 2 303 472 | HAND GUARD, WHITE, RIGHTAlternative for position 6 | - | ||
71 60 9 062 048 | HAND PROTECTION BLACK LEFTAlternative for position 6 | - | ||
71 60 9 062 049 | HAND PROTECTION BLACK RIGHTAlternative for position 6 | - | ||
| 7 | 71 60 2 303 573 | BUSH | - | |
| 8 | 07 11 9 902 998 | HEX BOLT - M6X35-8.8-ZNS3 | - | |
07 11 9 901 189 | bolt 6x1.0x35Alternative for position 8 | - | ||
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 10 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 08/90) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 10 | - | ||
| 11 | 71 60 2 337 064 | COVER FOR HANDLEBAR CROSSTUBE, WHITE | - | |
71 60 2 337 065 | COVER FOR HANDLEBAR CROSSTUBE, BLACKAlternative for position 11 | - | ||
| - | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - |
