BENCH SEAT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #52_1019 | 32 parts

100%

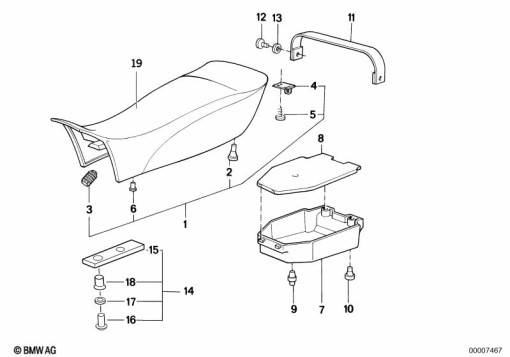

R100GS (47E1) BENCH SEAT exploded view parts diagram

Parts List (32)

#	Part Number	Description	Qty
1	52 53 2 307 311	DOUBLE SEAT BENCH - BLUE/WHITE	-
	52 53 2 307 312	DOUBLE SEAT BENCH - YELLOW/BLACKAlternative for position 1	-
	52 53 2 307 313	DOUBLE SEAT BENCH - BLACKAlternative for position 1	-
	52 53 2 307 315	DOUBLE SEAT BENCH, LOW - YELLOW/BLACKAlternative for position 1	-
	52 53 2 307 316	DOUBLE SEAT BENCH, LOW - BLUE/WHITEAlternative for position 1	-
	52 53 2 307 317	DOUBLE SEAT BENCH, LOW - BLACKAlternative for position 1	-
2	52 53 1 230 319	RUBBER SUPPORT - D=18MM	-
	52 53 1 236 128	BUMP STOP - H=10Alternative for position 2	-
3	51 23 1 852 347	STOP BUFFER	-
4	52 53 2 307 192	HOLDER	-
5	07 11 9 907 943	FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13-Z1	-
	07 11 9 904 310	SHEET METAL SCREW - 4,2X13Alternative for position 5	-
6	07 12 9 948 747	BLIND RIVET - 3,2 2A	-
7	51 16 1 456 181	TOOL BOX	-
8	51 16 1 452 427	COVER	-
9	52 53 2 323 001	SUPPORT	-
10	51 16 1 452 421	BUMP STOP	-
11	52 53 2 307 090	STRAP - BLACK	-
	52 53 2 307 091	STRAP - BLUEAlternative for position 11	-
12	52 53 2 307 098	RIVET	-
13	07 11 9 904 606	WASHER - 6-200 HV-ZNS3	-
14	52 53 2 307 170	SET: INSTALLATION KIT	-
15	52 53 1 456 118	HOLDER	-
16	52 53 2 307 171	RIVET	-
17	07 11 9 936 439	WASHER - 5.3-140 HV-ZNS	-
18	07 11 9 949 632	RIVET - A6X0.4X8-CU	-
19	52 53 2 307 337	SEAT COVER LOWER SEAT - YELLOW/BLACK	-
	52 53 2 307 338	SEAT COVER LOWER SEAT - BLUE/WHITEAlternative for position 19	-
	52 53 2 307 339	SEAT COVER - BLUE/WHITEAlternative for position 19	-
	52 53 2 307 340	SEAT COVER - YELLOW/BLACKAlternative for position 19	-
	52 53 2 307 341	SEAT COVER - BLACKAlternative for position 19	-
	52 53 2 307 342	SEAT COVER LOWER SEAT - BLACKAlternative for position 19	-
