R100GS (47E1) | Rear Axle & Suspension
SINGLE COMPONENTS FOR REAR SPRING STRUT

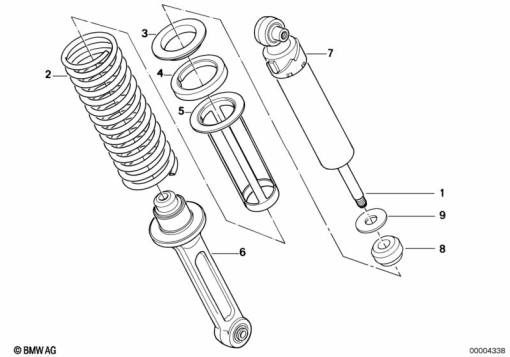

Diagram #33_0657 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 310 503 | SHOCK ABSORBER - H 13 (from 08/88) | - | |
| 2 | 33 53 2 310 505 | COIL SPRING, BLACK - D=10,95MM (from 08/88) | - | |
33 53 2 310 506 | COIL SPRING, YELLOW - D=10,95MM (from 08/88)Alternative for position 2 | - | ||
| 3 | 33 53 1 458 216 | SPRING POCKET (from 08/88) | - | |
| 4 | 33 53 1 458 236 | SPRING PAD UPPER - 5MM (from 08/88) | - | |
| 5 | 33 53 1 451 989 | PROTECTION TUBE (from 08/88) | - | |
| 6 | 33 53 1 457 883 | SHOCK RETAINER (from 08/88) | - | |
| 7 | 33 53 1 452 234 | RING (from 08/88) | - | |
| 8 | 33 53 1 457 885 | ABSORBER (from 08/88) | - | |
| 9 | 33 53 1 458 359 | SPRING POCKET (from 08/88) | - |
