R100GS (47E1) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_0653 | 22 parts

100%

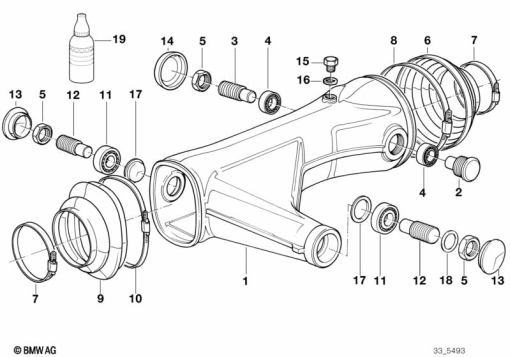

R100GS (47E1) REAR WHEEL SWINGING ARM exploded view parts diagram

Parts List (22)

#	Part Number	Description	Qty
1	33 17 1 457 606	REAR WHEEL SWINGING ARM	-
-	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-
2	33 17 2 310 890	PIVOT PIN	-
-	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-
3	33 17 2 310 904	PIVOT PIN, RIGHT	-
4	33 17 2 311 091	NEEDLE BEARING - 10X32X17	-
5	33 53 3 054 174	HEX NUT	-
6	33 17 1 452 504	RUBBER BOOT	-
7	33 17 1 458 197	TENSION STRAP - D=85MM	-
	33 17 1 458 346	TENSION STRAP - D=83MMAlternative for position 7	-
8	33 17 2 335 120	TENSION STRAP - D=132MM	-
9	33 17 1 230 304	RUBBER COVER	-
	3318304	BOOTAlternative for position 9	-
10	33 17 1 458 068	TENSION STRAP - D=94MM	-
11	33 17 1 241 546	TAPERED ROLLER BEARING - 40X17X17	-
12	33 17 1 236 955	PIVOT PIN - L=42,5MM	-
13	33 17 1 230 296	0.01	-
14	33 17 1 458 097	COVERING CAP	-
15	07 11 9 909 703	SCREW PLUG - AM12X1,5	-
16	07 11 9 963 130	GASKET RING - A12X15,5 AL	-
18	07 11 9 932 649	SHIM - 20X28X1	-
19	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
