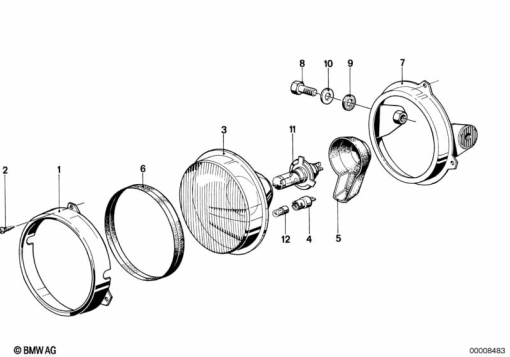

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 1 244 023 | COVER | - | |
| 2 | 07 11 9 907 910 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X9,5-F | - | |
| 3 | 63 12 1 244 022 | HEADLIGHT - ECE | - | |
63 12 1 244 211 | HEADLIGHT - H4Alternative for position 3 | - | ||
| 4 | 63 12 1 244 213 | BULB SOCKET | - | |
| 5 | 63 12 1 244 094 | 0.09 | - | |
| 6 | 63 12 1 244 147 | GASKET RING | - | |
| 7 | 63 12 1 244 024 | CARRIER | - | |
| 8 | 07 11 9 903 039 | HEX BOLT - M8X20-ZNNIV SI | - | |
| 9 | 63 12 1 358 129 | RUBBER WASHER | - | |
| 10 | 63 12 1 244 136 | WASHER | - | |
| 11 | 63 12 1 354 619 | BULB - H4 | - | |
| 12 | 07 50 9 063 576 | BULB - 12V 4W | - | |
07 11 9 978 256 | BULBAlternative for position 12 | - | ||
07 11 9 978 2561 | PARKING BULBAlternative for position 12 | - |
